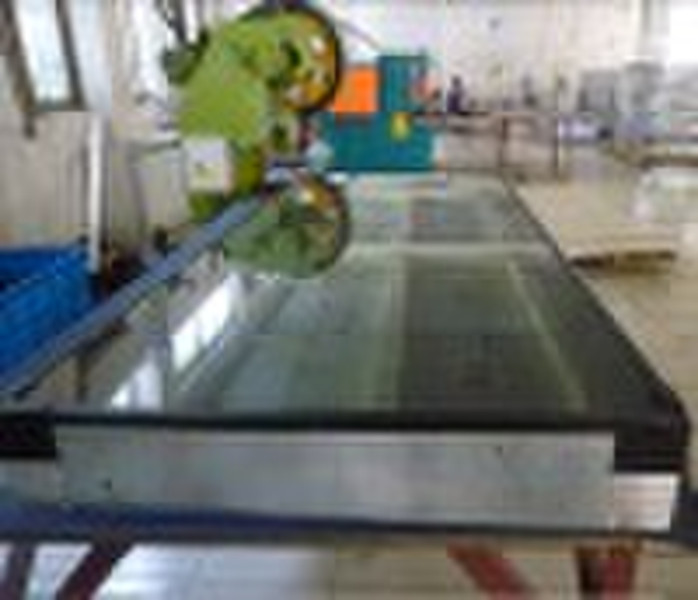

Solar Air Heater

Solar Air Heater Model No. MZ-KQJRQ-1 Dimension [mm] 2000*870*165 Weight 40Kg Absorber Material Aluminum-based selective absorbing coating Insulation Material Polyurethane foaming Sealing Material TPV rubber Frame Material Insulating and edge folding plate Cover Material Glass Power Supply & Power 110-220V,50/60Hz 35W Control Mode Set temperature control Max. Air Flux 150CFM Outlet Air Temperature 60°C-80°C Working Ambient Temperature -40°C-50°C Brief Introduction of Solar Air Heating Collector 1.Working Principle: Solar air heating collector is a device that heats the air with solar radiation energy, to offer warm air for houses in Winter or cold weather days. Its working principle is as follows: when temp reaches setting value, the temp. Prober will send signal to fan, fan begin to work. Cold air enters into collector through the air inlet, and then is heated circularly by heat collector, and finally Hot air is derived out of collector by the fan, and enters into the house through air outlet. The heat collector is fitted with thermal absorber, heating insulator and driving device. 2.Perfomance Characteristics: Working Condition: when it is in normal sunlight condition, and the inlet temperature is 10°C, the temperature inside the collector can reach about 90 °C, the outlet temperature can reach 50-60°C and the max flux can reach 150 cfm. Application Range:It can be applied to domestic heating, central heating and industrial heating system. A 2-6m2 installation area can meet the requirement of domestic heating in winter. Superiority of the product:The heat-producing capacity is high, which equals to that of a 3500W air conditioner. And the service life is as long as 15 years. It saves electricity, and a single heater is only 35W. The cost performance is low which only 1/5 of the air conditioner is. Moreover, it is safe and environment-friendly.
